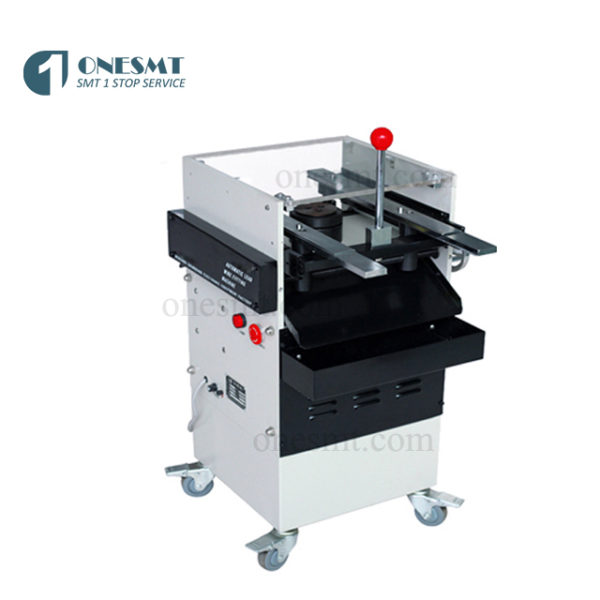

Manual PCB lead cutter

Manual PCB lead cutter: 1.Cutting the DIP board lead; 2.durable and cost effective.

Model: OB-C668C
Brand: OUBEL
Delivery Time: 3-5 working days

Compare

描述

Manual PCB lead cutter

Features

1.It is using in the cutting the DIP chips lead after welding.

2.Cutting height can be adjustable. Blade running smooth,low noise, high efficient.

3.Special guide rail, longer lifespan,suitable for any 0.5-2.5mm thickness PCB.

Specifications

ModelOB-C668COB-C668D
Dimensions550mm*410mm*800mm650mm*510mm*950mm
PCB thicknessApprox0.8-2.5mm
Length of the PCB LeadApprox1-3mm
Rotation speed4500r/min
The route of the guide rail0-220mm0-280mm
BladeΦ200*70*3.5mmΦ250*70*3.5mm
Nominal power550w
PowerAC220V±10%     50Hz
WeightApprox.80KGApprox.90KG
